Boundary Plus® Wireless GPS System Support
As you and your pet continue to learn your new Boundary Plus Wireless GPS System together, please be sure to reference Invisible Fence® Brand's Boundary Plus Wireless GPS Owner's Manual for information on how your system works, your transmitter, your Collar Unit, periodic maintenance, troubleshooting, battery charger and more.
Here is a brief overview of some common alerts that can help you and your pet stay connected inside the boundary.

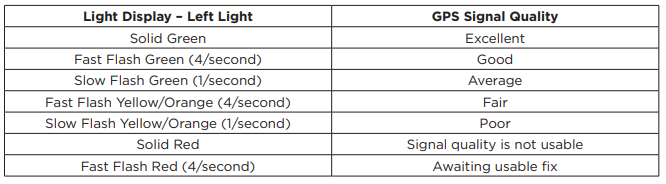

Base Unit Left Light Indicator
The GPS 3.0 Base Unit’s Left LED reflects GPS signal quality. See indicators below to know when action is needed.
Base Unit Right Light Indicator
The GPS 3.0 Base Unit’s Right LED reflects base input voltage and mode. See indicators below to know when action is needed.

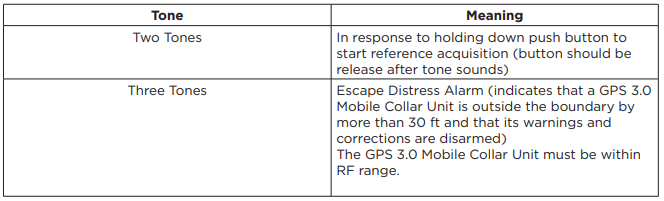

The GPS 3.0 Base Unit uses tones to communicate warnings and notifications. See indicators below to know when action is needed.
Collar Unit Battery Light Indicator - Battery Status
Under normal operating conditions, the LED will periodically flash the following two flash
Battery and GPS status indicators.
The first LED flash indicates Battery Status. See indicators above to know when action is needed.
Collar Unit Battery Light Indicator - GPS Status
Under normal operating conditions, the LED will periodically flash the following two flash
Battery and GPS status indicators.
The second LED flash indicates GPS signal quality. If navigation is NOT started, the indicator will always be RED. To ensure that navigation has been started, gently shake the unit.

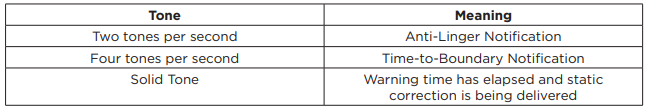

Collar Unit Tone Indicator
When in normal operating mode the GPS 3.0 Mobile Collar Unit will generate tones
associated with real time operation. Audible beeps emanating from the GPS 3.0 Mobile Collar Unit are intended to warn the pet that a correction is imminent if the action is not corrected. The duration of the warning tone depends on the notification type.
As an additional measure of protection from running through the boundary, there is less warning as the urgency of the violation increases. The length of time for a warning tone accumulates and is inherited by any subsequent violation. Accumulated warning time is discarded only when there is no current violation. Static corrections are always accompanied by a solid tone.

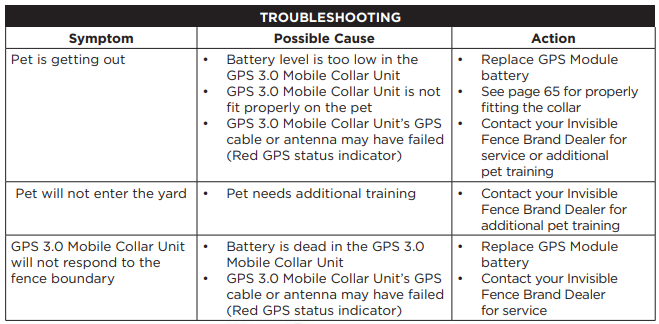

Here are some common tips to help troubleshoot your system.

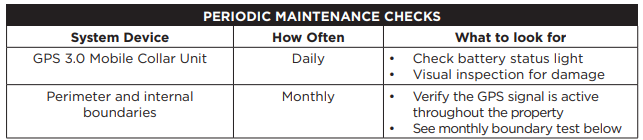

Periodic Maintenance Checks
Your system should be periodically maintained, including the checks listed above.
If you have any questions, please call your local dealer at 800-578-3647
